Machining Facilities

PT Pindad (Persero) memliki beberapa mesin industri yang dapat digunakan untuk beberapa fungsi. Kami melayani Jasa pemesinan presisi untuk berbagai jenis produk dan komponen Industri antara lain :

  1. Produk ( Pembuatan Komponen ) :
    • Mesin untuk Industri
    • Mesin Roll
    • Tekstil
    • Gear Box
    • Otomotif
    • Jig & Fixture
    • dan lain-lain
  2. Jasa ( Proses Pemesinan Komponen) :
    • Turbine
    • Pompa
    • Runner
    • Otomotif
    • Jig & Fixture ( Base Frame )
    • Berbagai macam Dies
    • Mesin untuk Industri
    • Perkapalan
    • Kereta Api
    • dan lain-lain
  3. Jasa ( Perbaikan Mesin-mesin Industri ) :
    • Frais
    • Bubut
    • dan lain-lain

Dengan tim teknisi dan engineering kami akan mendukung konsumen untuk menghasilkan proses pemesinan dengan presisi tinggi.




Certification

Thosiba CNC Double Column Machining Center : X - Axis 6,500 mm Y- Axis 2,900 mm Z- Axis 1,000 mm Max Load on Table 15,000 Kg Table Dimension 6,000 x 1,800 mm

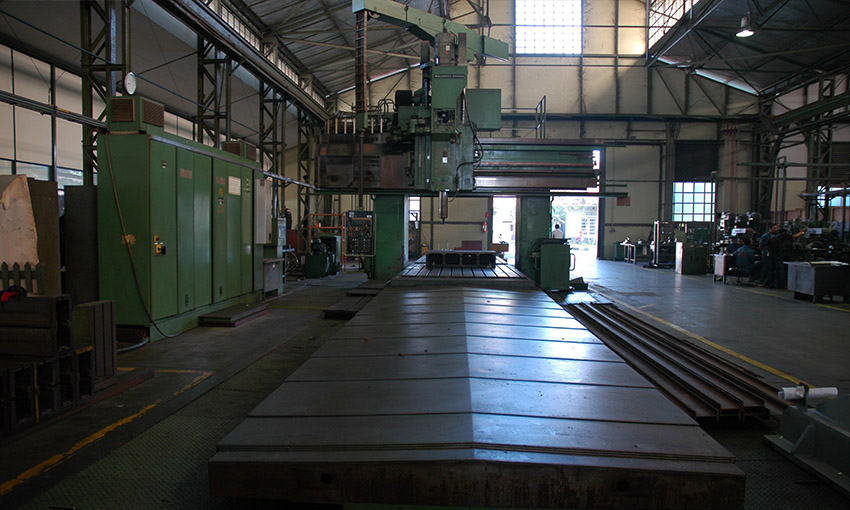

Waldrich Siegen CNC Machining Center : Table.1 ( Front ) 2,250 x 4,000 mm Table.2 ( Rear ) 2,250 x 4,000 mm Table Joind 2,250 x 8,750 mm Distance between Top of Table 1,600 mm dan Face of Milling Spindle Max.Width of Workpiece 2,450 mm Max.Load on Table 21,000 Kg

Lieber CNC Heavy Duty Standard Bed Lathe & Milling : Distance between Centers 6,000 mm Max. Swing Over Bed 1,100 mm Max.Swing Over Cross Slide 750 mm Max.Load 15,000 Kg

WOTAN NC Horizontal Boring & Milling : Table Longitudinal Travel 1,600 mm Table Cross Travel 2,200 mm Headstock Vertical Travel 750 mm Max.Load on Table 8,000 Kg Table Dimension 1,520 x 1,700 mm

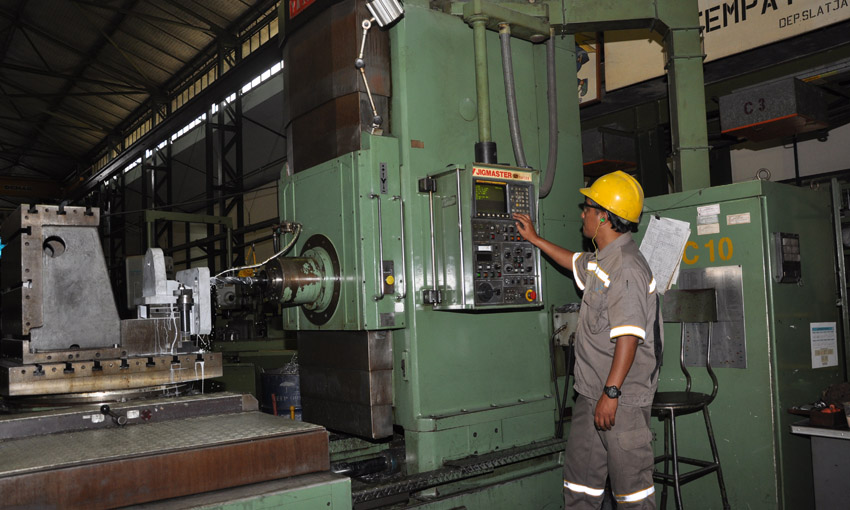

YASDA CNC Horinzontal Jig Boring & Milling Machine : X - Axis 1,000 mm Y- Axis 800 mm Z- Axis 700 mm Max.Load on Table 1,500 Kg Table Dimension 800 x 800 mm

DAINICHI CNC Lathe Machine : Distance between centers 1,500 mm Max Swing over Bed 820 mm Max Swing over Carriage 650 mm Max Load 1,000 Kg

WERNER CNC Horizontal Milling : X - Axis 700 mm Y- Axis 450 mm Z- Axis 250 mm Max Load on Table 1,000 Kg Table Dimension 300 x 700 mm

HURON NC Universal Knee Type Milling : X - Axis 1,400 mm Y- Axis 680 mm Z- Axis 535 mm Max Load on Table 1,000 Kg Table Dimension 460 x 2,000 mm

FEMCO NC Vertical Turret Lathe : Z- Axis 1,600 mm Table Diameter 1,500 mm Max. Load on Table 1,200 Kg

OGAWA Bor Radial : Working area of base 2,630 x 1,230 mm Distance of Spindle to Base Max 1,780 mm Min 520 mm Spindle Head Longitudinal 2,120 mm Travel mm Vertical arm Travel 800 mm Spindle Travel 400 mm

VERTIMASTER CNC Vertical Turning Boring & MillingVERTIMASTER CNC Vertical Turning Boring & Milling : Table Diameter 2,500 mm Max Swing & Turning Diameter 3,200 mm Max Turning Height above Top on Table 2,800 mm Right Hand Cross Rail Head Vertical Travel ( Z - axis ) 1,600 mm Horizontal Travel to Right of center Table ( X-Axis ) 1,800 mm Max Load on Table 25,000 Kg Table Diameter 2,500 mm Max Swing & Turning Diameter 3,200 mm Max Turning Height above Top on Table 2,800 mm Right Hand Cross Rail Head Vertical Travel ( Z - axis ) 1,600 mm Horizontal Travel to Right of center Table ( X-Axis ) 1,800 mm Max Load on Table 25,000 Kg

LATHE MACHINE Konvensional machine : Max Diameter 100 mm (small lathes) Max Length 500 mm Max Diameter 200 mm (medium lathes) Max Length 1,250 mm Max Diameter 250 mm (large lathes) Max Length 2,000 mm

MAILLING MACHINE Konvensional machine : Max Width 220 mm Max Length 700 mm Max Height 350 mm

GRINDING MACHINE : Max Width 300 mm (surface grinding) Max Length 500 mm Max Diameter 200 mm (centerless grinding) Max Length 500 mm
