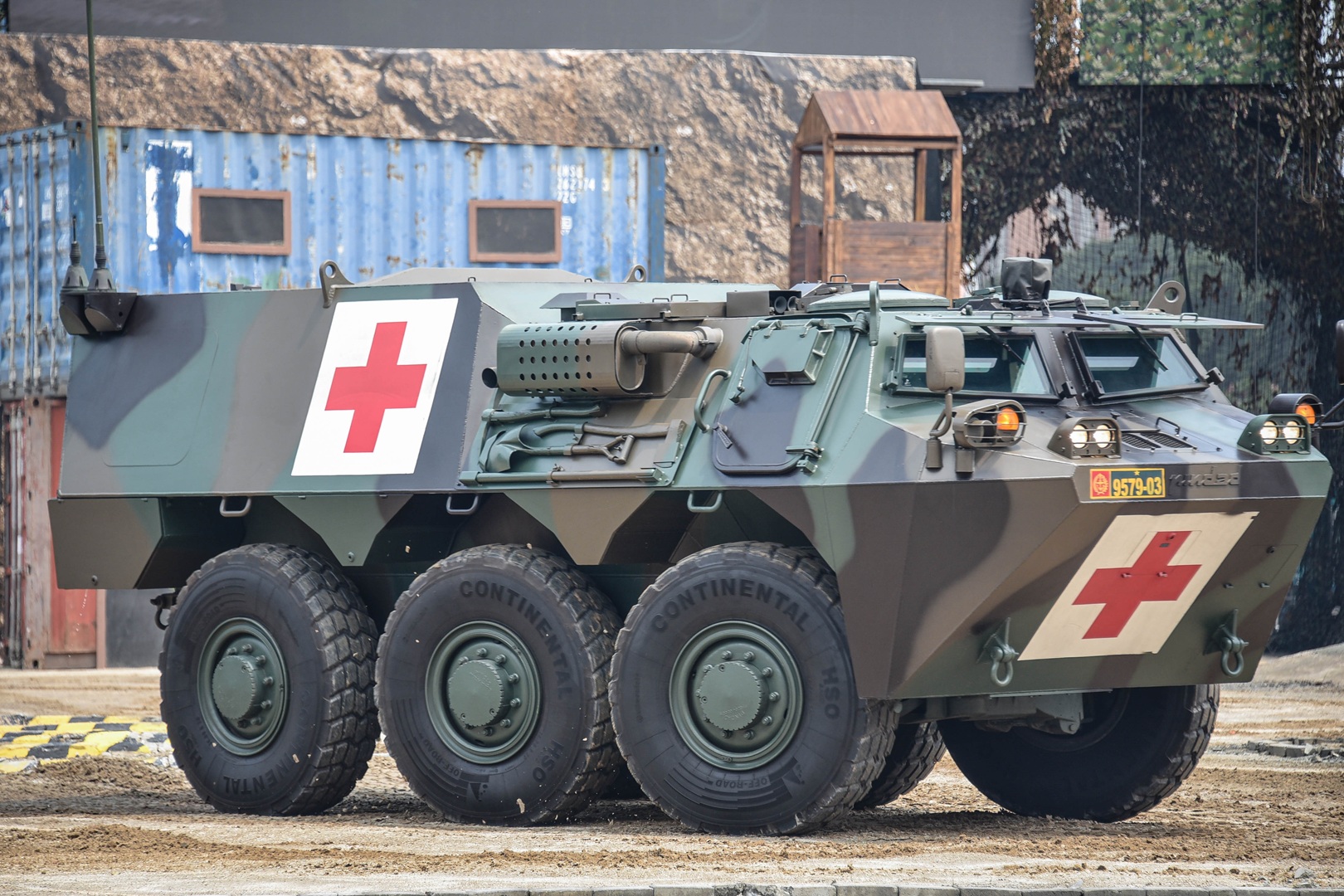

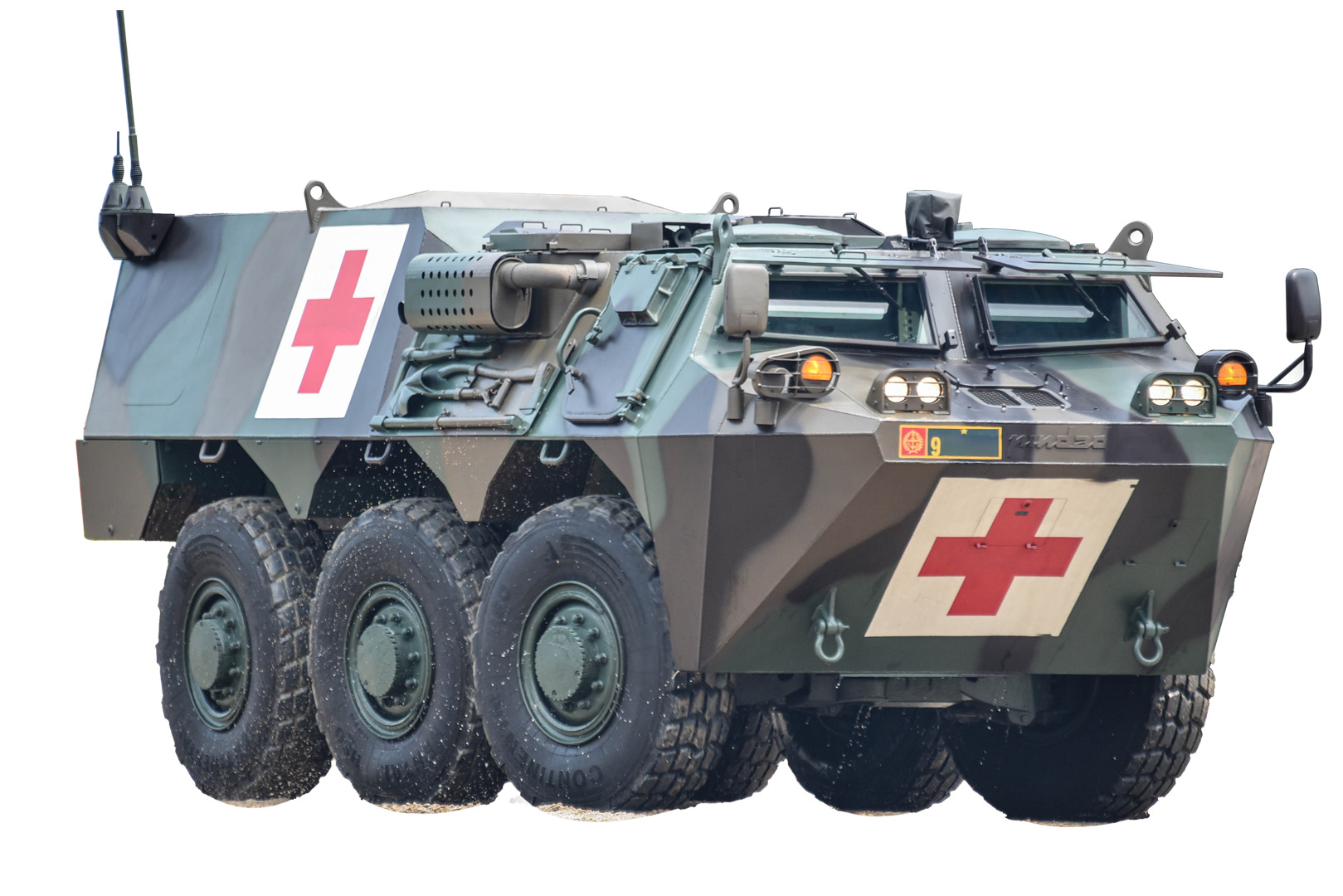

Anoa 6x6 Ambulance merupakan varian Anoa yang diperuntukan bagi petugas medis dalam melaksanakan tugas perbantuan di medan pertempuran. Varian ini dilengkapi dengan berbagai kelengkapan medis seperti oksigen serta alat pacu jantung. Tipe ini memiliki kapasitas kru 7 orang. Spesifikasi mesin serta alat komunikasi sama dengan varian Anoa yang lainnya.
General : Configuration : 6 x 6 Crew : 3 + 3 Persons Dimension (LxWxH) mm : ± 6.000x2.500x2.370 (hull) : ± 6.000x2.500x2.500 (copula) Wheel Base : 1.510 mm Empty Weight : ± 12.500 kg Combat Weight : ± 14.500 kg Power to Weight Ratio : > 20 Hp/ton Angle of Approach/Departure : 45°/45°
Performance : Max Speed (Flat Road) : ± 80 km/h (safety speed recommendation). (Offroad) : ± 40 km/h Max. Gradient : 60 % (31°) Max. Side Slope : 30 % (17°) Angle of Approach/Departure : 45°/45° Fording Depth : 1 m Vertical Obstacle : 0.40 m Ground Clearance : 0.40 m Trench : ± 0.75 m Turning Radius : < 10 m Fuel Tank : ± 200 Liter Maximum Range : ± 600 km
Technical : Engine : Diesel Turbo Charger Inter Cooler, 6 Cylinders Inline 320 HP @ 2.300 rpm. Water Cooling, EURO-3 Transmission : Automatic ZF 6HP502S 6 forward / 1 reverse Engine Coolling System : Hydrolic Drive Cooling Fan Body Protection : Monocoque Armoured Steel, Armoured Glass Optional Protection : Applique Armoured (Ceramic/Composite) Suspension : Modular Independent with Torsion Bar Steering System : Mechanical Hydraulic Power Steering on 2 axle, front & midle Wheel & Tyre : 1400 - R20 Runflat Insert Brake System : All Wheel Hydropnematic Controled Disc Brake Electrical (Battery) : 2 x 12v - 100 AH (Alternator) : 24V / 100 Amp.
Weapon System : Smoke Grenade Dischargers : cal. 66 mm; (3 right, 3 left) Turet - Elevation : -10° s.d. +45° - Rotation : 360° - Operation : Manually
