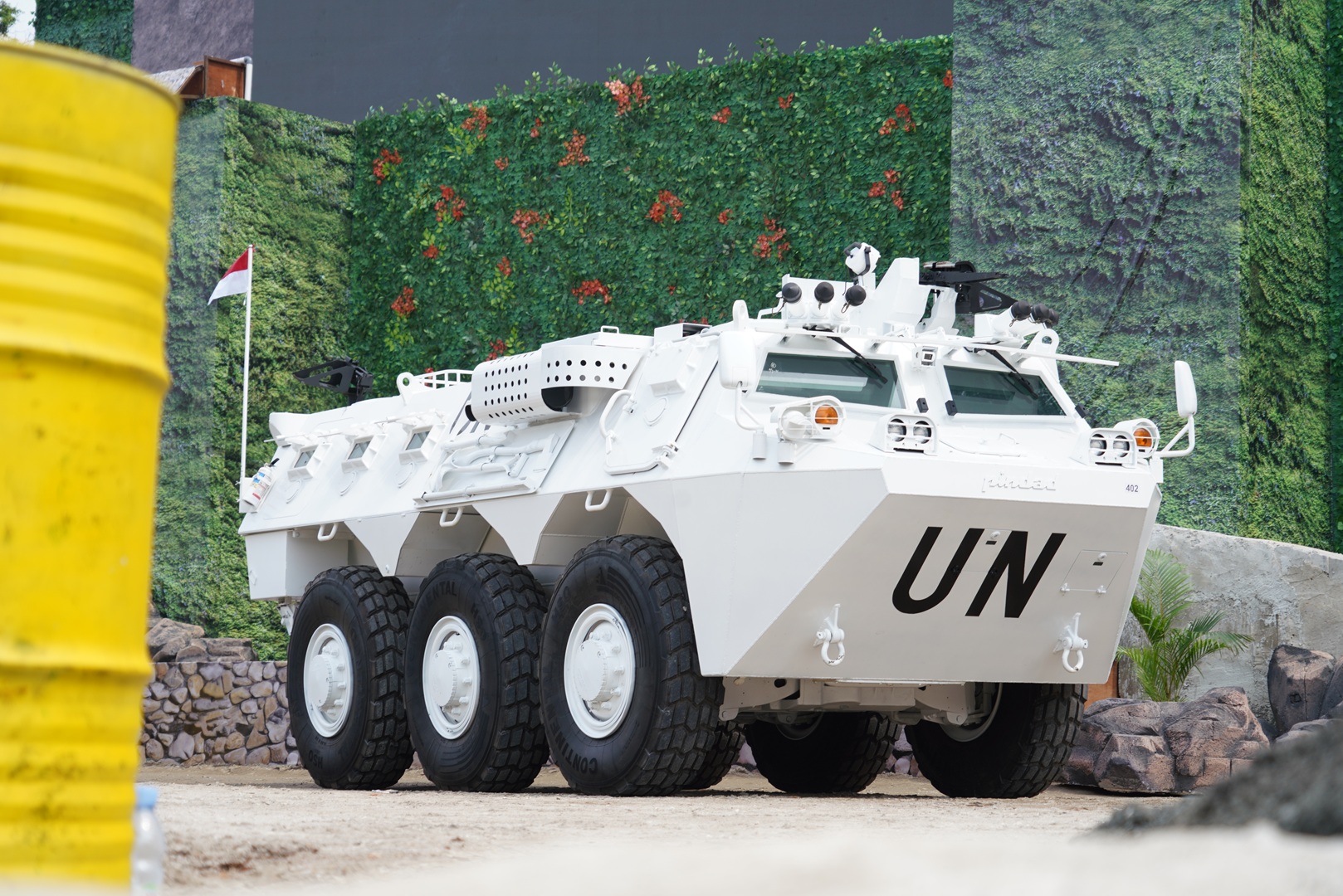

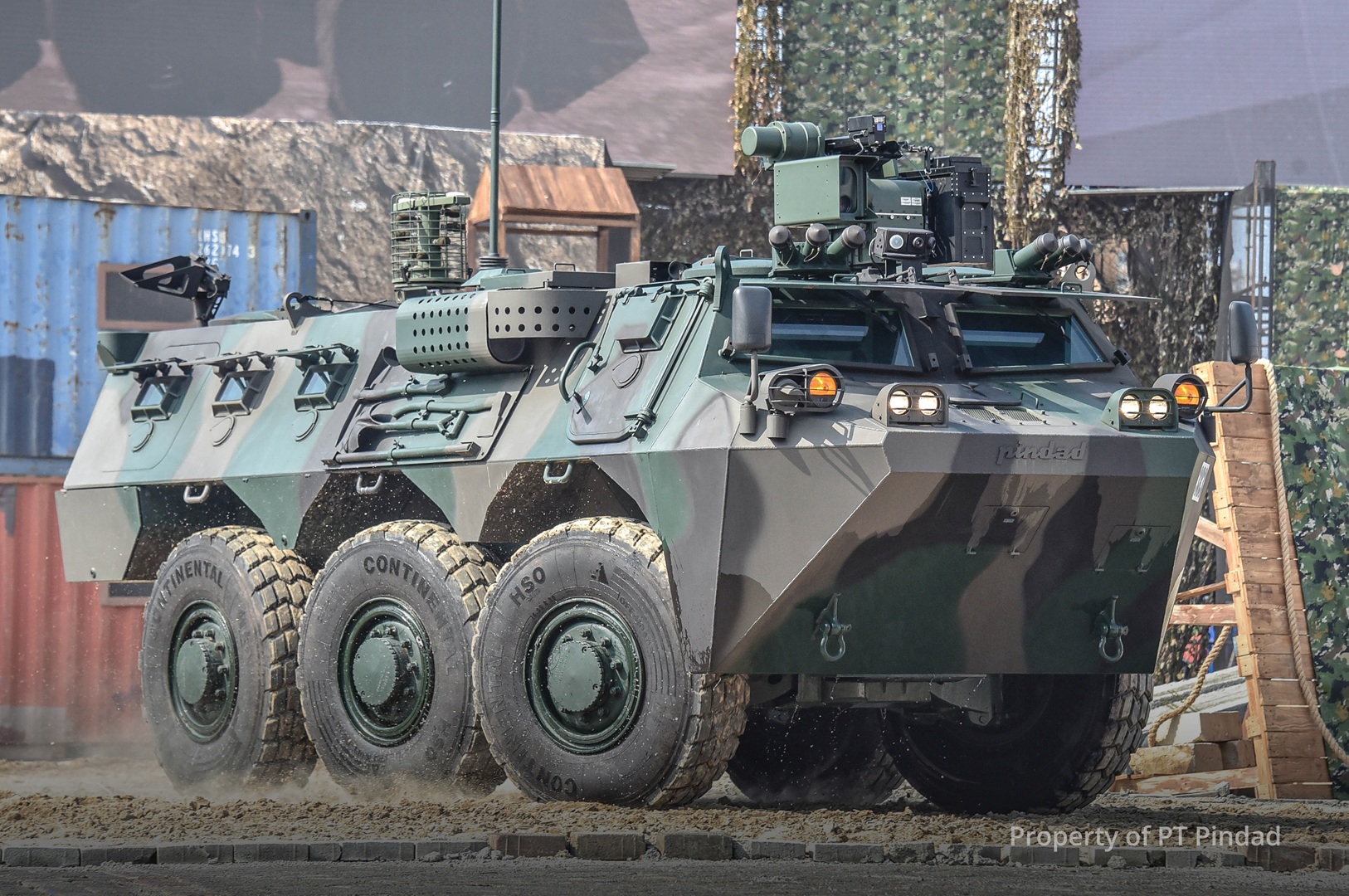

Anoa 6x6 APC adalah generasi pertama kendaraan tempur dari PT Pindad (Persero) yang memiliki keunggulan dalam mobilitas, proteksi serta daya angkut. Anoa 6x6 APC memiliki rasio daya berat 25 HP/ton, serta dilengkapi dengan sistem komunikasi dan transmisi otomatis. Anoa tipe APC memiliki kapasitas 12 orang personel termasuk pengemudi. Memiliki top speed 80 km/h pada jalan raya dengan daya jelajah 600 kilometer.
General : Configuration : 6 x 6 Crew : 3 + 10 Persons Dimension (LxWxH) mm : ± 6.000x2.500x2.170 (hull) ; ± 6.000x2.500x2.500 (copula) Wheel Base : 1.510 mm Empty Weight : ± 12.500 kg Combat Weight : ± 14.500 kg Power to Weight Ratio : > 20 Hp/ton
Performance : Max Speed (Flat Road) : ± 80 km/h (safety speed recommendation). (Offroad) : ± 40 km/h Max. Gradient : 60 % (31°) Max. Side Slope : 30 % (17°) Angle of Approach/Departure : 45°/45° Fording Depth : 1 m Vertical Obstacle : 0.40 m Ground Clearance : 0.40 m Trench : ± 0.75 m Turning Radius : < 10 m Fuel Tank : ± 200 Liter Maximum Range : ± 600 km
Technical : Engine : Diesel Turbo Charger Inter Cooler, 6 Cylinders Inline 320 HP @ 2.300 rpm. Water Cooling, EURO-3 Transmission : Automatic ZF 6HP502S 6 forward / 1 reverse Engine Coolling System : Hydrolic Drive Cooling Fan Body Protection : Monocoque Armoured Steel, Armoured Glass Optional Protection : Applique Armoured (Ceramic/Composite) Suspension : Modular Independent with Torsion Bar Steering System : Mechanical Hydraulic Power Steering on 2 axle, front & midle Wheel & Tyre : 1400 - R20 Runflat Insert Brake System : All Wheel Hydropnematic Controled Disc Brake Electrical (Battery) : 2 x 12v - 100 AH (Alternator) : 24V / 100 Amp.
Weapon System : Smoke Grenade Dischargers : cal. 66 mm; (3 right, 3 left) Turret - Elevation : -10° s.d +45° - Rotation : 360° - Operation : Manual
